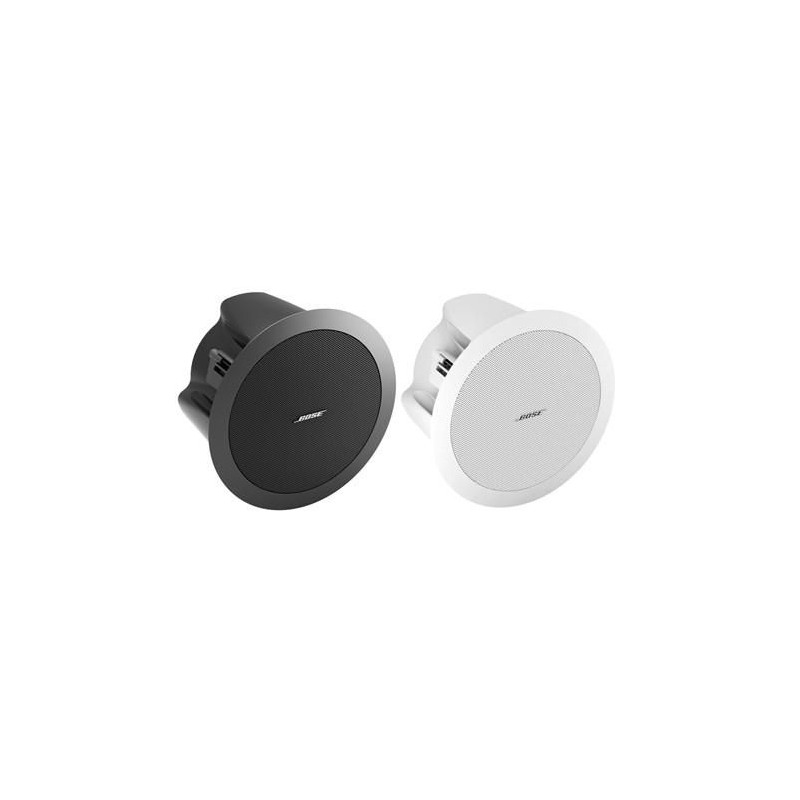

It meets numerous standards for combination music and evacuation systems around the world and is backed by a transferable Product Description This versatile design makes the DS 40F suitable for almost any ceiling installation: flush mounted above the ceiling, pendant mounted in open ceilings or installed in air handling (plenum) spaces. The DS 40F can be installed quickly and simply due to its integrated mounting arms.
#Bose freespace ds 40f full#
Clean, sleek styling visually blends into ceilings while providing exceptional acoustic presence, full bass and clear detail.įreeSpace DS 40F loudspeakers are acoustically compatible with FreeSpace DS 40SE surface-mount loudspeakers and can be combined on the same loudspeaker line.
#Bose freespace ds 40f driver#
They are engineered with a single 4.5" (114.3mm) driver known for robustness and durability, and deliver full range performance from 80 Hz to 16 kHz. These 40-watt loudspeakers can be easily flush mounted in ceilings up to 26 feet (8m) high. They are well-suited for a wide range of indoor commercial applications, such as: retail stores, restaurants, bars/nightclubs, houses of worship, hospitality venues, public spaces, offices, meeting rooms, hallways, entrance ways, lobbies and concourses. Please Note: Speakers are priced per unit (not per pair) FreeSpace ® DS 40F LoudspeakerįreeSpace ® DS 40F loudspeakers deliver background and foreground music with fullness, notable presence and detail, as well as clear, natural sounding speech reproduction. Net Weight : 8.3 lb (3.7 kg)- with transformer Ceiling Thickness (Maximum) : 2.5" (64 mm) 35" (8.9 mm) diameter hole on junction box Three mounting points at the rear of the enclosure for use with optional accessory pendant mount kit.
Suspension / Mounting : Three integrated quick-install mounting arms. Optional accessory available for use when ceramic connector and thermal fuse are required. Connectors : Three-terminal barrier strip two-terminal barrier strip (8 ohm variant). Enclosure : Polypropylene (front baffle), powder-coated steel (rear enclosure) Nominal Impedance : 8 Ω (transformer bypassed)
Maximum SPL 1 m : 103 dB SPL (109 dB SPL peak) Sensitivity (SPL / 1 W 1 m) : 87 dB SPL Long-Term Power Handling : 40 W (160 W peak) Recommended High-Pass Filter : 70 Hz high-pass filter Frequency Range (-10 dB) : 70 Hz - 19 kHz Frequency Response (+/-3 dB) : 80 Hz - 17 kHz
Supported by a suite of accessories, including ceiling-mount bracket, adjustable tile bridge, pendant-mount kit and square grille Shared voicing across entire FreeSpace DS product family enables DS 16, DS 40 and DS 100 loudspeakers to be integrated on the same system and maintain consistent tonal quality Shortcan design allows installation in shallower ceilings with minimum depth of 6.4" (163 mm) Integrated multi-tap transformer with innovative thumb wheel adjustment for easy-to-change tap setting from underneath the loudspeaker grille Full-range loudspeaker with a single 4.5" (114 mm) driver in a ported enclosure to deliver a 125° conical coverage pattern and clear, intelligible music and speech reproduction for flush-ceiling or pendant-mount applications High output and 125° conical pattern with a frequency range down to 70 Hz. Versatile, high-performance, full-range, flush-mount loudspeaker designed for foreground and background music and speech reproduction in a wide range of installed applications.
